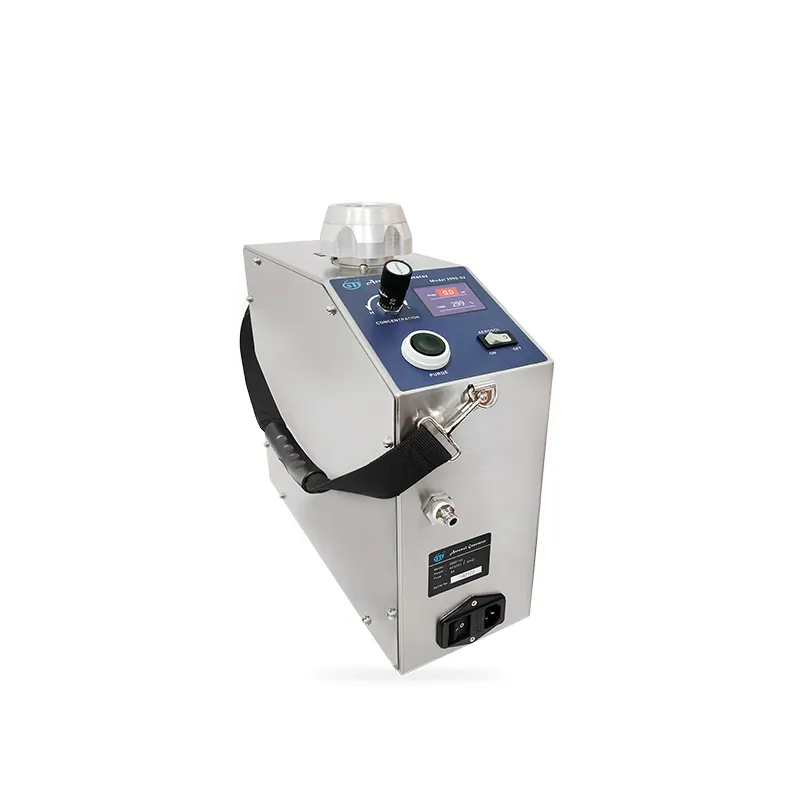

Aerosol Generator Model 3990-02 (Thermal)

Key Features & Benefits

  • Output of aerosol with high concentration
  • Larger oil storage space, increased by 40% compared to traditional generator
  • An external LCD display to read temperature and pressure variations in real time
  • Applicable to different flow rates of air conditioning system
  • 2-min rapid heating
  • Multiple types of aerosols can be used

Specifications

Airflow Range 500-70000cfm(833-119000m³/h)
Concentration Range 10µg / L: flow 70000cfm; 100µg / L: flow 7000cfm
Heating Time ＜2-3min，operation temperature to reach 370℃
Aerosol Reagent PAO-4、DOS/DEHS、Ondina EL、DOP/DEHP and Mineral Oil
Generation Thermal condensation
Air Source Nitrogen, Argon, Carbon Dioxide or Helium(50psi) 345kPa±70kPa
Power Source AC 120-240V 50/60Hz
Size (L x W x H) 430×140×350mm
Weight Approx.10 kg
