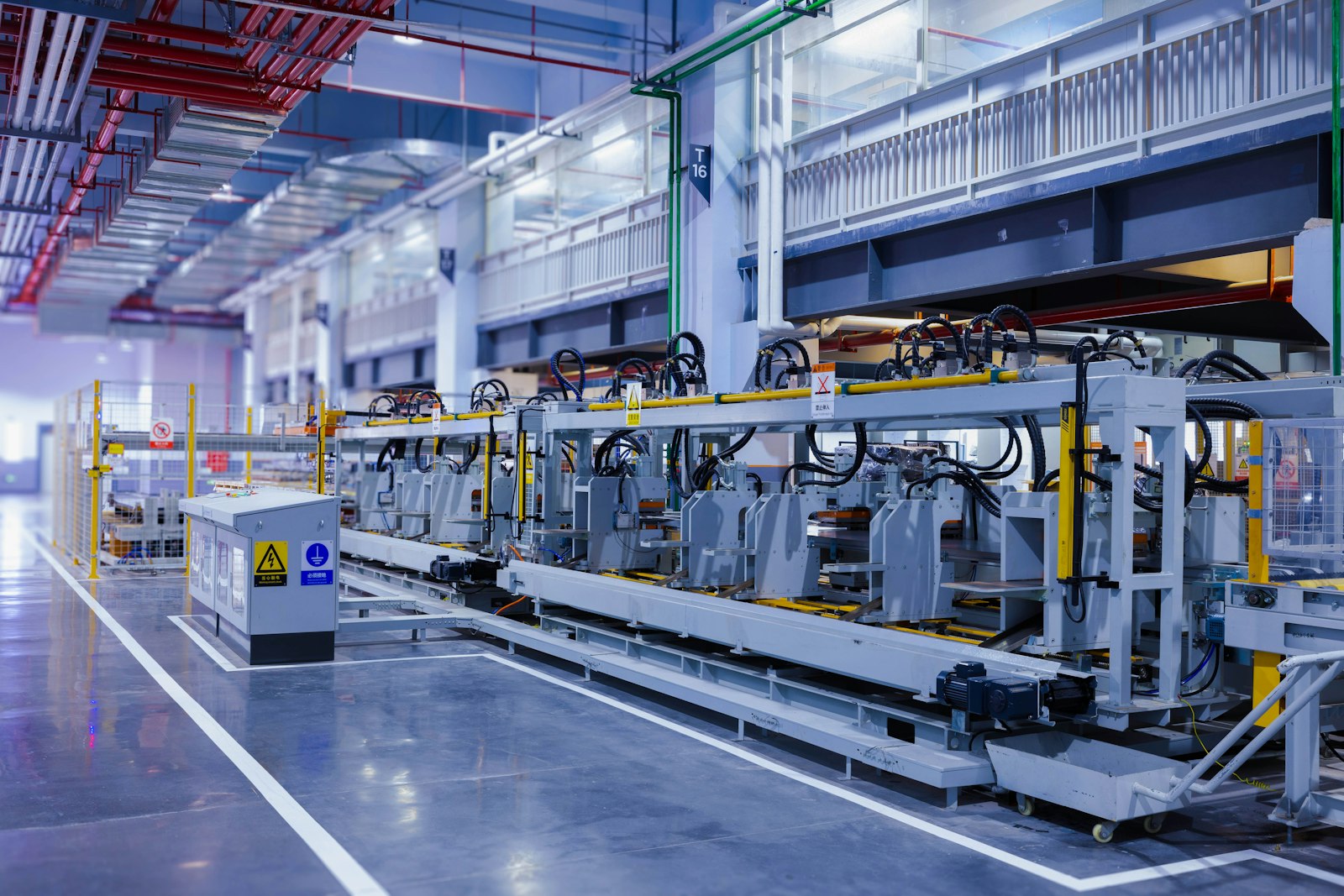

Visitors walking into a battery dry room for the first time usually comment on their lips and eyes before anything else. The air is that dry. A room held at a dew point of −40 °C and 20 °C has a relative humidity of well under one per cent. For electrode drying, cell assembly and electrolyte filling, that is not a luxury. It is a process requirement, and in many cell lines the target is −50 °C or lower.
This article looks at why the number matters, where the moisture comes from, and what to check when a dry room is qualified.
Why lithium-ion lines are so sensitive
The common electrolyte salt, lithium hexafluorophosphate, reacts with water. One of the products is hydrofluoric acid, which attacks the cathode material and the solid electrolyte interphase that forms on the anode during the first charge. The result shows up later as gas generation, capacity fade and shorter cycle life. Electrodes and separators also pick up moisture from the air, and once it is in the cell it is very hard to get out.
Because the damage is invisible at the time and only appears weeks later in testing, dry room performance has to be proven and monitored, not assumed.
Where the moisture comes from
- People. Each operator breathes and perspires water vapour into the room continuously. In a dry room, people are often the largest internal load, which is why occupancy limits are part of the design basis.
- Leakage. Any gap in the envelope lets humid outside air in. At these dew points, even small leaks around cable penetrations and door seals matter.
- Materials. Cartons, paper, pallets and anything stored outside bring moisture with them. Material airlocks and rules about what may enter are as important as the air handling.
- Door openings. Each opening is a pulse of moist air. The question is how quickly the room recovers.
How the dew point is held
Dry rooms almost always use desiccant rotor dehumidifiers, usually with cooling coils before the rotor to take out the bulk of the moisture first. The supply air is delivered several degrees drier than the room target, because the room is continuously adding moisture back. The envelope is built tight, kept at positive pressure against its surroundings, and entered through airlocks.
Measuring very low dew points
Measurement is harder than it sounds. Ordinary relative humidity sensors are not accurate at a fraction of a per cent. Dry rooms are monitored with dew point sensors suited to the range, typically aluminium oxide or similar types, and checked against a chilled-mirror hygrometer as the reference instrument.
These sensors respond slowly at very low moisture levels, and the sampling line itself can hold moisture if it is the wrong material or too long. Stainless steel or suitable polymer tubing, short runs, and enough time for the reading to settle are all part of getting a believable number.
What to check in qualification
- Dew point mapping across the room at working height, at rest and with the planned number of people working, over a long enough period to see the dehumidifier cycle.
- Recovery after a defined disturbance, such as a door opening or personnel entry, with the time taken to return to the target.
- Pressure cascade between the dry room, the airlocks and the surrounding areas.
- Temperature uniformity, since many processes in the room are also temperature-sensitive.
- Alarms on the monitoring system, tested at the set points, with a defined response.
- Calibration of every sensor used, at a dew point close to the operating range.
After qualification
The most useful habit is simple trending. A dew point that creeps from −52 °C to −47 °C over a few months is usually a sign of something specific: a rotor losing capacity, a seal failing, more people in the room. Caught early, it is a maintenance job. Caught after a batch of cells fails formation testing, it is an investigation.
