GAMPWLD26C Mapping Datalogger

GAMPWLD26C

Wireless Mapping Datalogger

-40 °C to +110 °C & 0 to 100 %RH

The GAMPWLD26C is a dedicated validation tool. Built for mapping duty only, it covers the widest measurement range in the family and logs as fast as every 30 seconds, so temperature and humidity gradients are captured with the resolution a qualification study demands.

Define start and stop times, control the logging interval, and generate audit-ready study reports complete with graphs, deviations and statistical summaries.

Key Features

• Mapping mode with scheduling — define study start and stop times up front.
• 30 second logging — resolution suited to qualification and thermal validation studies.
• Widest range in the family — -40 °C to +110 °C with full humidity coverage.
• Direct Wi-Fi connectivity — no gateway required, secure TCP/IP communication.
• Audit-ready reporting — graphs, deviation logs and statistical summaries generated automatically.
• Offline storage — 10,000 records retained during network outages.

Typical Applications

• Cold room and freezer qualification.

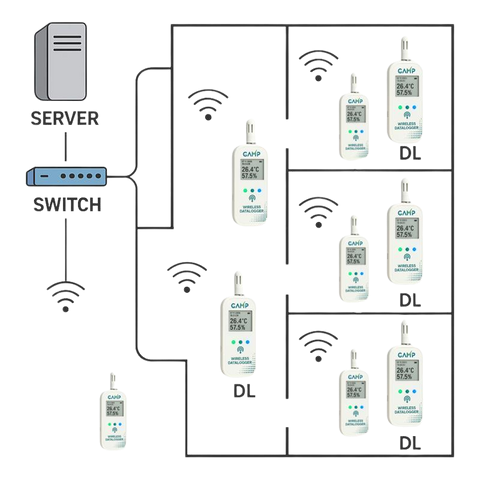

• Temperature and humidity mapping of warehouses and controlled storage.
• Cleanroom mapping and stability chamber qualification.
• Thermal validation studies across production and storage areas.
• Transport and shipping lane qualification.

Setup in Minutes

• Insert the battery and switch the device ON.
• Switch OFF, hold the trigger button and switch ON again to enter Configuration Mode - the green LED turns on and the blue LED blinks.
• Connect your mobile or laptop to the device Wi-Fi and open 192.168.4.1 in a browser.
• Enter the server URL, Wi-Fi SSID and password, then submit the configuration.
• Schedule the study start and stop times in the software and place the loggers.

Study reports are generated in our 21 CFR Part 11 compliant monitoring software.
