GAMPWRD26C Wired Datalogger

Wired Data Logger

Temperature, Humidity & Differential Pressure — RS485 / Modbus RTU

Measured, alarmed locally and reported to your supervisory system.

The Wired Datalogger measures temperature, relative humidity and differential pressure, displays them continuously on a capacitive touchscreen, raises local audible and visual alarms against configurable limits, and reports every value, status flag and alarm to a supervisory system over RS485 using Modbus RTU.

All configuration — alarm setpoints and limit modes, calibration offsets, buzzer behaviour, device address, location tag and real-time clock — is held in non-volatile memory and can be written by the supervisory system. Configuration writes are validated as a set and applied atomically, so a value that fails validation leaves the previous configuration fully intact. Readings are corrected by the stored calibration offsets at the moment of acquisition, so the value on the panel, the value that trips an alarm and the value read over Modbus are always the same number.

Key Features

Three parameters on one panel — temperature, relative humidity and differential pressure.
Three product variants — differential pressure only, temperature and humidity only, or all three combined.
Per-parameter alarm limit modes — Range, NLT only, NMT only or Off, so a one-sided specification is configured and displayed exactly as written.
Non-maskable sensor fault alarms — two fault alarms that no configuration can suppress.
Validity flag for every parameter — a faulted sensor is never mistaken for a stable reading.
Configurable audible alarm — 0 to 254 second pre-alarm delay, silenced locally by operator acknowledgement.
Modbus RTU slave at 115200 baud — device address set from the touchscreen.
Real-time clock with validity flag — set from the supervisory system, so an untrustworthy timestamp is reported rather than silently used.
Configuration retained across power loss — everything is held in non-volatile memory.
Headless operation — if the display fails, sensing, alarming and Modbus communication continue and the condition is reported.

Variants

Variant	Temperature	Humidity	Differential Pressure	Typical Application
GAMPWRD26A	—	—	✓	Room pressure cascade monitoring
GAMPWRD26B	✓	✓	—	Storage and stability areas
GAMPWRD26C	✓	✓	✓	Cleanrooms and classified areas (default)

The variant is set by the supervisory system and stored in non-volatile memory. A parameter that a variant does not include is never measured, reports zero with its validity flag cleared, and can never raise an alarm.

Measurement Specifications

Parameter	Measuring Range	Resolution	Accuracy	Sample Period
Temperature	-40.0 to +125.0 °C	0.1 °C	±0.5 °C typical (5 to 50 °C)	1 s / 500 ms
Relative Humidity	0.0 to 100.0 %RH	0.1 %RH	±2.0 %RH typical	1 s / 500 ms
Differential Pressure	-60 to +60 Pa	1 Pa	±2 % FSS (about ±10 Pa)	1 s

Technical Specifications

Feature	Specification

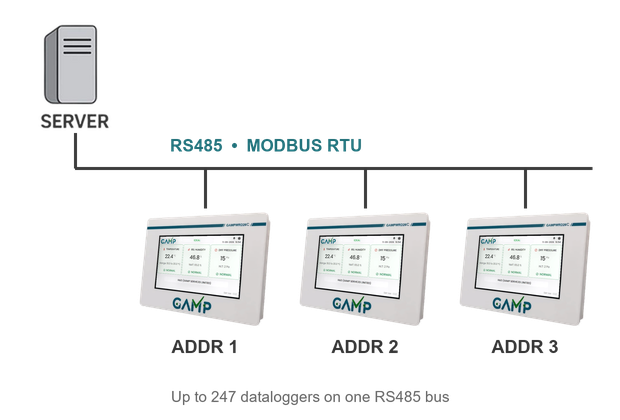

Communication	RS485, 2-wire half duplex — Modbus RTU slave
Baud Rate / Frame	115200 baud, 8 data bits, no parity, 1 stop bit (8N1)
Slave Address	1 to 247, set on the touchscreen
Function Codes	0x03 Read Holding Registers, 0x10 Write Multiple Registers
Display	7-inch TFT LCD (1024 × 600 or 800 × 480) or 4.3-inch TFT LCD (800 × 480)
Touch	Projected capacitive touchscreen
Alarms	Six configurable (upper and lower limit per parameter) Two non-maskable sensor fault alarms
Alarm Limit Modes	Range, NMT (Not More Than), NLT (Not Less Than), Off
Alarm Evaluation	Every 500 ms; a reading equal to the limit is in alarm
Audible Alarm	1 s on / 1 s off; 0 to 254 s pre-alarm delay
Location Tag	Up to 52 characters, set by the supervisory system
Real-time Clock	Temperature-compensated, coin cell backup
Pressure Sensor	±249 Pa (±1 inH₂O) full scale; long-term stability ±0.35 % FSS per 1000 h at 25 °C

Typical Applications

Pharmaceutical & life sciences — cleanrooms and classified manufacturing areas, room pressure cascades between adjacent areas, warehouses and controlled storage, cold rooms, stability and testing chambers, laboratories and QC areas.
Semiconductor manufacturing — cleanroom environmental control, wafer fabrication areas, packaging and test areas, and zoned HVAC areas with stage-specific setpoints.

Wired or Wireless?

Choose wired for permanent installations, room pressure cascades and differential pressure monitoring, local alarming at the point of use, or areas where wireless is restricted.
Choose wireless for rapid deployment, mapping studies, transport monitoring, or where running cable is impractical. See the GAMPWLD26A, GAMPWLD26B and GAMPWLD26C.
Both report into the same platform, so a single site can mix them freely.

Runs on our 21 CFR Part 11 compliant monitoring software. Talk to our team about your installation.
