Thermal Validation

Kaye ValProbe RT

-80 to +140°C

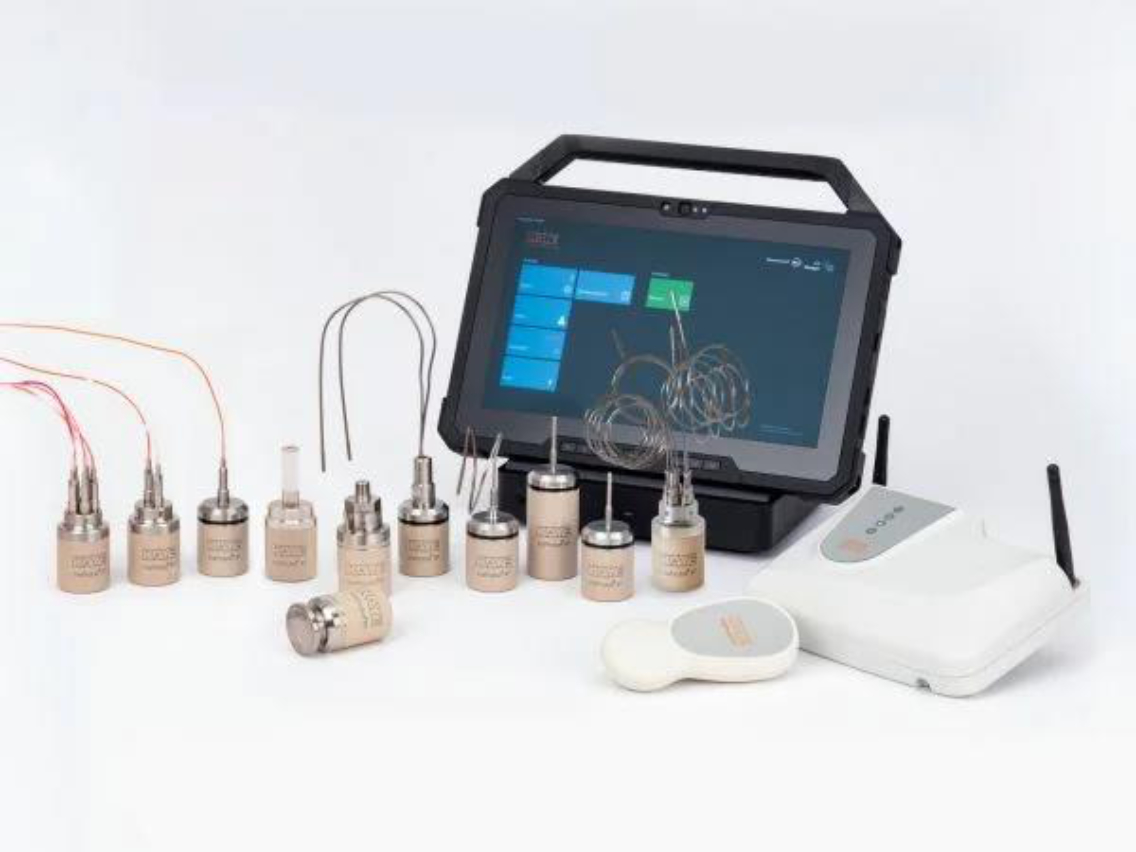

Kaye ValProbe® RT (Real-Time) is a cutting-edge wireless thermal validation system tailored to meet the thermal validation and regulatory requirements of the Pharmaceutical and Biotech industries. As the reliability, repeatability, and accuracy of real-time wireless technology evolve, Kaye has harnessed the latest advances in RF and battery technology to design the most sophisticated wireless thermal validation system on the market, centered around the wireless data logger.

• A wide range of wireless data loggers for accurate, in-situ measurements of critical process temperatures, pressures, and humidity (-80C to 140C). These wireless data loggers ensure precise monitoring in even the most demanding conditions.
• A Base Station that guarantees reliable real-time wireless communications, collecting process data efficiently from the wireless data loggers. The use of advanced technologies, like antenna diversity, ensures unmatched signal strength and communication reliability with each wireless data logger.
• A robust Validation Console running Windows 10 LTSC, preloaded with ValProbe RT® software dedicated to validation tasks. This setup enhances security and reduces software validation efforts. The software’s intuitive interface supports all validation tasks, including Setups, Qualifications, Logger Verifications, Reporting, and Data Storage/Backup, conforming to all current regulatory requirements for 21 CFR Part 11, Data Integrity, and Cyber Security.

The ValProbe RT® family of wireless data loggers provides precise, convenient, and reliable process measurements for various pharmaceutical and medical device applications. These wireless data loggers are part of a system that integrates high-accuracy measurements and automated sensor verification, supported by an intuitive metro-style user interface and extensive reporting capabilities.

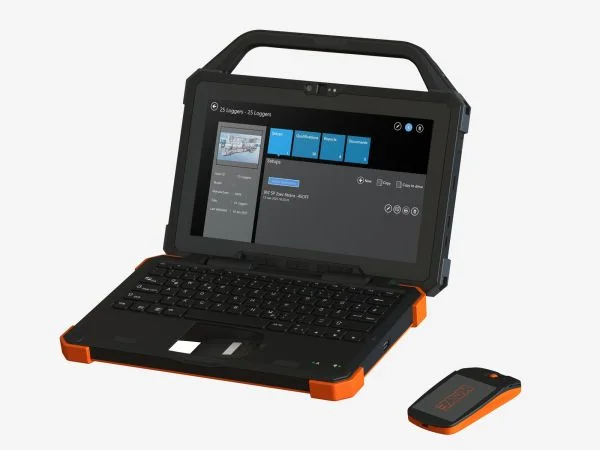

Console

A robust Validation Console running Windows 10 LTSC, preloaded with ValProbe RT® software dedicated to validation tasks. This setup enhances security and reduces software validation efforts. The software’s intuitive interface supports all validation tasks, including Setups, Qualifications, Logger Verifications, Reporting, and Data Storage/Backup, conforming to all current regulatory requirements for 21 CFR Part 11, Data Integrity, and Cyber Security

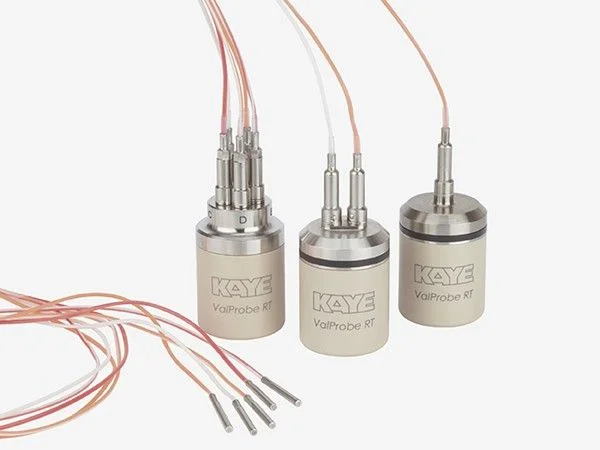

Flexible Real-Time Temperature Data Logger

Sensor Type	Single, Dual and 5-Channel
Sensor Length	40" inches 1000 mm
Tip Diameter	0.095"; 2.4mm
Measurement Range	-85°C to 140°C
Accuracy	-85°C to 140°C, ±0.1°C

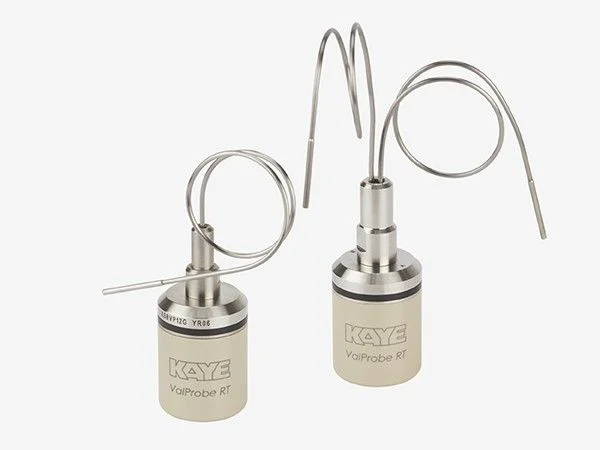

Temp Logger Bendable Sensors

Sensor Type	Single and Dual Sensor
Sensor Length	12, 24, 36" inches 305, 610, 915 mm
Tip Diameter	0.095"; 2.4mm
Measurement Range	-85°C to 400°C
Accuracy	-85°C to 140°C, ±0.1°C 140°C to 400°C ±0.25°C

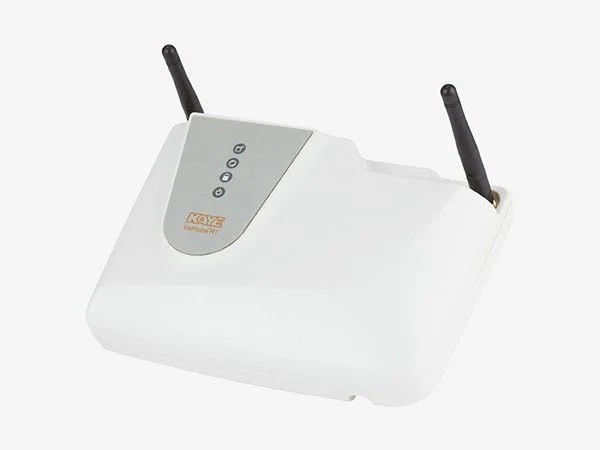

Base Station

• RF-Range up to 100 meters
• Dual antenna technology / allows installation of autoclave antenna
• Can operate as standalone system / internal 32 GB memory
• Power supply 100 – 240 V
• Battery backup for up to 10 minutes
• USB port for high speed RF reader (MOPS)
• Logger wake-up sound indicator
• CE, UL certified

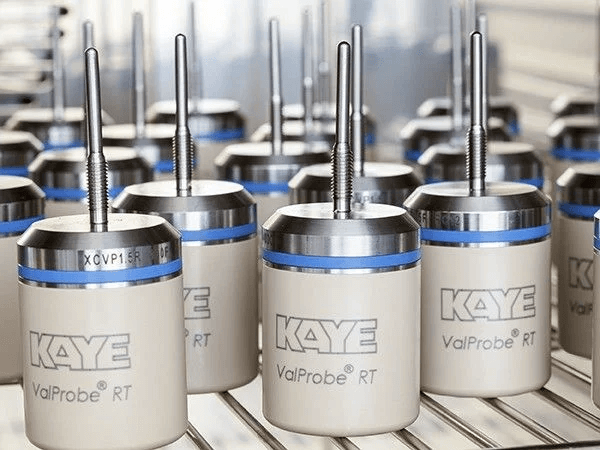

Temp Logger Rigid Sensors

Sensor Type	Single Sensor
Sensor Length	1.5, 3, 6, 9" inches 38, 76, 152, 229 mm
Tip Diameter	0.118"; 3mm
Measurement Range	-85°C to 140°C
Accuracy	-85°C to 140°C, ±0.1°C

Surface Temp Logger

Sensor Type	Ultra Flat Surface Sensor
Sensor Length	-
Tip Diameter	32mm diameter
Measurement Range	-85°C to 140°C
Accuracy	-85°C to 140°C, ±0.1°C

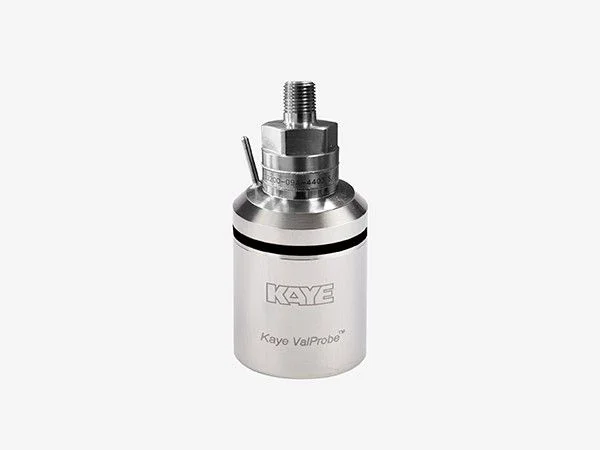

Pressure/Temperature Logger

Sensor Type	Single P/T Sensor
Sensor Length	-
Tip Diameter	1/4 NPT Connection fitting
Measurement Range	0°C to 140°C / 0-5bar abs.
Accuracy	0°C to 120°C ±25mb 120°C to 135°C ±10mb 135°C to 140°C ±25mb 0°C to 140°C, ±0.1°C

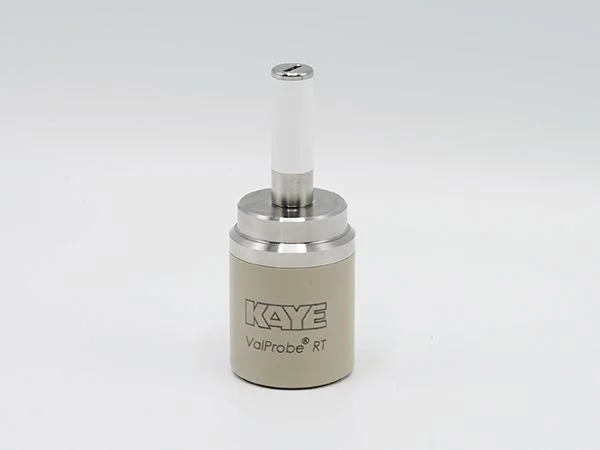

Humidity/Temperature Logger

Sensor Type	Digital RH/T Sensor
Sensor Length	Up to 1 meter
Tip Diameter	Sensor tip: 0.295”, 7mm Outer filter: 0.472”, 12mm
Measurement Range	Temp: 0°C to 70°C Humidity: 15% to 95%
Accuracy	0°C to 70°C, ±0.15°C 15% to 95% RH, 2%

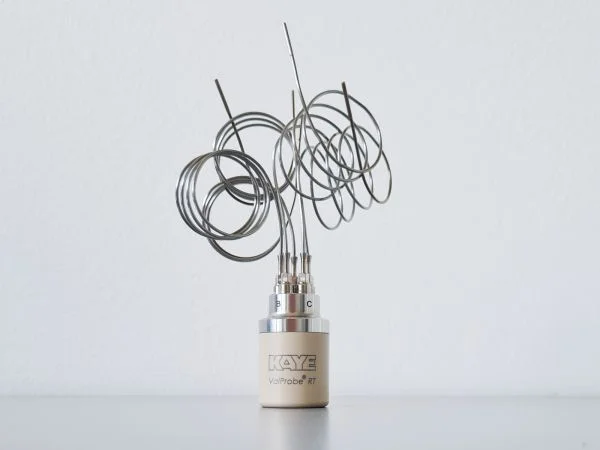

Bendable 5 channel logger

Sensor Type	5 channel Sensor
Sensor Length	61 cm (24”)
Sensor Diameter	1.6 mm (0.063”)
Probe tip Diameter	2.0 mm (0.078”)
Measurement Range	0 °C to 400°C
Accuracy	0 °C to 140°C, ±0.1°C 140°C to 400°C ±0.25°C
